M8 Pronged Tee Nuts

Brand Name : PM

Model Number : M5-M12,1/4-7/16

Certification : ISO

Place of Origin : CHINA

MOQ : 10PCS

Price : USD 0.0015-2 PER PCS

Payment Terms : L/C, T/T

Supply Ability : 500tons per month

Delivery Time : 15-25DAYS PER CONTAINER

Packaging Details : 25kgs/carton and 36 cartons on standard export wooden pallets

Standard : DIN1624

Size : M8

Surface : Black

Material : Carbon Steel Q235

Grade : CL 4

Thread : UNC

Height : 11-15mm

Product name : Carbon steel UNC half insert thread black finishM8 four claws Tee Nut

Contact Now

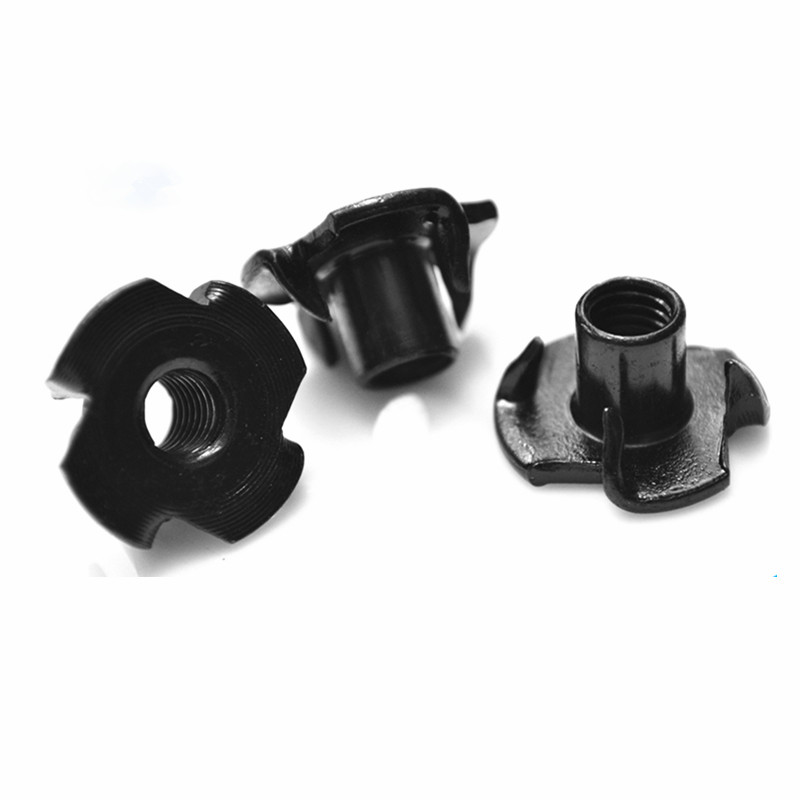

Carbon steel UNC half insert thread black finishM8 four claws Tee Nut

T-Nuts are an economical method of fastening a metal mechanism to a component that is made of wood, plastic, particleboard, or pressboard, or for anchoring wooden components to each other. T-Nuts consist of a flat flange with a cylindrical barrel which is threaded to allow a bolt to engage the T-Nut. Prongs often extend from the flange to grip the material into which the T-Nut is being inserted.

M8 Pronged Tee Nuts

Nominal Size	Thread Pitch (p)	Overall height (h)	Prong Height (a)	Width of base (d2)
		Ref.	Ref.	Ref.
#10	24	5/16.	7/32.	3/4.
1/4.	20	5/16.	7/32.	3/4.
1/4.	20	7/16.	5/16.	3/4.
5/16.	18	3/8.	1/4.	7/8.
5/16.	18	5/8.	5/16.	7/8.
3/8.	16	7/16.	11/32.	1

Nominal Size	Thread Pitch (p)	Overall height (h)	Prong Height (a)	Width of base (d2)
		Ref.	Ref.	Ref.
M4	0.7	6	5	15
M5	0.8	8	7	17
M6	1	9-12.	7	19
M8	1.25	11-15.	9	22
M10	1.5	13	11	25

Standard: ASME/ANSI ,DIN1624

Size: 1/4",5/16",3/8",7/16", M5-M12

Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass

Grade: Class 4. SAE J429 Gr.2, B8,B8M,B8T

Thread: UNC, UNF,UN

Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.

Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet

b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet

Supply Ability:1000 tons per month

MinimumOrder:200kgs for each specification

Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP

Payment :T/T, L/C , D/A , D/P , Western Union,etc

Market:South&north Amrica/Europe/ etc.
